Tutorial 4: Distributed-memory ROMs

In this tutorial we learn

• how to run the whole ROM pipeline of the previous tutorials in parallel, with MPI
• which data structures and algorithms make this possible

Why distributed ROMs

The offline phase of a ROM is far more expensive than a single FE solve: it requires tens to hundreds of FE solves, plus the assembly of as many residuals and Jacobians, their compression, and the hyper-reduction. As soon as the FE problem calls for a distributed-memory solver, the offline phase must be distributed too. Gathering snapshots on a single process is not an option: a snapshot matrix is as large as the number of DOFs times the number of parameters.

GridapROMs builds on GridapDistributed and PartitionedArrays so that every step of the offline phase (snapshots, compression, enrichment, hyper-reduction, Galerkin projections, I/O) runs on partitioned data, without ever gathering a full-order quantity on a single process.

A distributed ROM

The code is the one of Tutorial 2. The only changes are the creation of the processor grid and the distributed model, as in GridapDistributed:

using DrWatson
using Gridap
using GridapDistributed
using PartitionedArrays
using GridapROMs

function main(distribute,parts)
  ranks = distribute(LinearIndices((prod(parts),)))
  model = CartesianDiscreteModel(ranks,parts,(0,1,0,1),(40,40))

  D = ParamSpace((1,10,1,10,1,10))

  κ(μ) = x -> 1 + μ[1]*exp(-x[1]*x[2])
  κμ(μ) = parameterise(κ,μ)
  g(μ) = x -> exp(-x[1]/μ[2])
  gμ(μ) = parameterise(g,μ)
  h(μ) = x -> 5*cos(μ[3]*x[1])
  hμ(μ) = parameterise(h,μ)
  f(x) = 10.0

  Ω = Triangulation(model)
  Γn = BoundaryTriangulation(model;tags=6)
  dΩ = Measure(Ω,2)
  dΓn = Measure(Γn,2)

  reffe = ReferenceFE(lagrangian,Float64,1)
  V = TestFESpace(Ω,reffe;conformity=:H1,dirichlet_tags=[1,2,3,5,7])
  U = ParamTrialFESpace(V,gμ)

  a(μ,u,v) = ∫(κμ(μ)*∇(v)⋅∇(u))dΩ
  l(μ,v) = ∫(f*v)dΩ + ∫(hμ(μ)*v)dΓn
  feop = LinearParamOperator(l,a,D,U,V,FEDomains((Ω,Γn),(Ω,)))

  reduction = Reduction(1e-4,H1();nparams=20)
  rbsolver = RBSolver(LUSolver(),reduction;nparams_res=15,nparams_jac=10,verbose=i_am_main(ranks))

  fesnaps = solution_snapshots(rbsolver,feop)
  rbop = reduced_operator(rbsolver,feop,fesnaps)

  μon = realisation(feop;nparams=10,sampling=:uniform)
  x̂ = solution_snapshots(rbsolver,rbop,μon)
  x = solution_snapshots(rbsolver,feop,μon)
  perf = rom_performance(rbsolver,rbop,x,x̂)
  i_am_main(ranks) && println(perf)

  dir = datadir("poisson_distributed")
  save(dir,rbop)
end

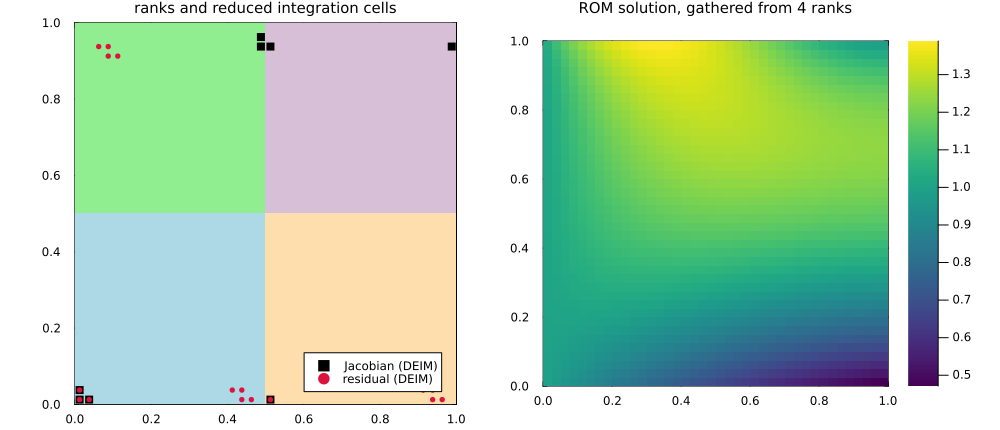

The figure at the top of this page shows the four subdomains of this run, with the cells of the reduced integration domains selected by DEIM, and the reduced solution for one of the online parameters. The reduced integration domains are tiny, and naturally spread across the processes: each process integrates only on the reduced cells it owns.

The distributed ROM is as accurate as its serial counterpart: on this problem, the relative error is of the order of $10^{-4}$, as in Tutorial 2.

Running with MPI

The function main is independent of the backend. To debug it in a single Julia session, PartitionedArrays provides the DebugArray backend, which emulates the processes sequentially:

with_debug() do distribute
  main(distribute,(2,2))
end

For a parallel run, use the MPIArray backend

with_mpi() do distribute
  main(distribute,(2,2))
end

and launch the script with 4 processes, e.g. with the mpiexecjl wrapper of MPI.jl:

mpiexecjl -n 4 julia --project=. poisson_distributed.jl

Each process writes its own files when saving snapshots or reduced operators, and the reduced operator is loaded back by passing the ranks:

rbop = load_operator(dir,feop,ranks)

Ingredients

GridapDistributed solves one PDE at a time, and PartitionedArrays partitions vectors and sparse matrices. Neither knows about parameters, about dense tall-and-skinny matrices (snapshots, bases), or about the algorithms of reduced order modelling. These are the main ingredients that we had to add, all in the module GridapROMs.Distributed:

What runs in parallel

Parallelising the complete RB pipeline required a distributed version of each of its algorithms. Most of them are not available in other libraries:

• POD. Snapshot matrices are tall and skinny, so the POD runs with the method of snapshots: each process contributes to the (norm-weighted) correlation matrix $S^T X S$, which is small and reduced across processes; its SVD gives the basis, which is then recovered row-wise without communication. The output is orthonormal in the norm $X$, e.g. $H^1$, assembled in parallel.
• Gram solves. Inverting the norm matrix (needed e.g. by supremizers) is done with a distributed preconditioned conjugate gradient, column by column.
• QR decompositions. Householder QR, with and without column pivoting, on row-partitioned matrices, as well as a rank-revealing, norm-weighted, pivoted Gram-Schmidt QR, used to orthogonalise bases in the $X$ inner product.
• Supremizer enrichment. Supremizers $X_u^{-1} B^T \phi^p$ are computed with the distributed Gram solver, and merged with the velocity basis with the weighted QR, which discards linearly dependent modes. This makes the reduced saddle-point problems (Stokes, Navier-Stokes) stable, in parallel.
• DEIM and S-OPT. The greedy selection of interpolation DOFs requires global argmax operations and the evaluation of basis rows owned by other processes. Every selected DOF is assigned to exactly one process (its owner), so that no contribution is counted twice, and the small interpolation matrices are replicated on every process.
• Reduced integration domains. Each process extracts the cells that support its selected DOFs, and integrates only there online. The local contributions are then reduced across processes into the hyper-reduction coefficients.
• Galerkin projections. $\Phi^T b$ and $\Phi^T A \Phi$ are computed with distributed products, accounting for the coupling of owned and ghost DOFs.
• Space-time and local ROMs. Kronecker space-time bases for transient problems, and local ROMs with k-means clustering, work on top of the above.

The online phase only needs the hyper-reduced assembly, a reduction of the coefficients, and the solution of a small, replicated reduced system: its cost is dominated by a handful of local integrals per process.

The test suite covers steady and transient problems, scalar and saddle-point problems (with supremizer enrichment), global and local compression, and DEIM, S-OPT and no hyper-reduction, both with the DebugArray and the MPI backends.

Summary

• Distributed ROMs are written exactly as serial ones, on a distributed model.
• Run them with with_debug to debug, and with_mpi (and mpiexecjl) in production.
• Pass the ranks to load_operator to load a distributed reduced operator.
